Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
Hello,
I'm busy making a display in processbook.
I use process book version 3.2.0.0.
This is off course provided with the playback option.
This may sound stupid but I can't find the playback toolbar.
When looking under view > toolbars or right click in the toolbar
there is not option to select a box for the playback toolbar.
Do I need to install this seperately, because I tought it would be installed when I installed process book.
|
|
|
|
|
OSIsoft vCampus is a subscription-based, online offering that consists of providing everything people need to develop applications on the PI System. We invite you to take a "tour" of the OSIsoft Virtual Campus - also feel free to consult the FAQ or contact OSIsoft vCampus for more details.
|
|
|
Rank: Newbie
Groups: Member
Joined: 7/5/2011
Posts: 9
Location: Massachusetts
|
Arnow,
The playback tools are on a different "toolbar" than the rest of the toolbars. Click view, then toolbar manager. A new toolbar will appear (or disappear if it is already enabled). If the playback toolbar isn't on this toolbar, right click it and choose playback.
Hope this helps.
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 4/7/2011
Posts: 137
Location: KZN, South Africa
|
Close processbook
Reset your toolbar config by deleting the following file (depending on OS) it should be located in C:\Documents and Settings\(Your profile)\Application Data\PISystem\PI-ProcessBook\en\PBToolbarConfig.ini
Restart Pbook
If is doesn't work, search your C-drive for PBToolbarConfig.ini and delete them.
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
I have been away for a week following a course for work.
But now I tried your advice squatty, I deleted the PBToolbarConfig.ini file, I checked the C drive for others.
Restart Processbook and I still don't find the Playback tool in the Toolbar Manager.
The ini file is then remade again.
I tried this several times by deleting and restarting ProcessBook.
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
Just for a record i did simulation of arnow's situation:
1. install PB 3.2.0.0, you get all the futures includes toolbar manger + browser + playback
2. Close PB, go to Program Files\pipc\Procbook and delete OSIsoft.PB.ToolBarManager.dll
3. now, you can not get toolbar manager and so browser + playback in PB
4. you can back dll file but it will not help. Only re-install PB can help.
Probably in some place (maybe PC registry) after deleting dll PB writes some information
I get registry events with Process Monitor about dll:
21:41:10,5459708 Procbook.exe 4892 RegOpenKey HKLM\SOFTWARE\Wow6432Node\PISystem\PI - ProcessBook\Addins\OSIsoft.PB.ToolBarManager.Connect SUCCESS Desired Access: Delete
21:41:10,5460054 Procbook.exe 4892 RegDeleteKey HKLM\SOFTWARE\Wow6432Node\PISystem\PI - ProcessBook\Addins\OSIsoft.PB.ToolBarManager.Connect SUCCESS
21:41:10,5462388 Procbook.exe 4892 RegCloseKey HKLM\SOFTWARE\Wow6432Node\PISystem\PI - ProcessBook\Addins\OSIsoft.PB.ToolBarManager.Connect SUCCESS
21:41:10,5463114 Procbook.exe 4892 RegOpenKey HKLM\Software\Wow6432Node\PISystem\PI - ProcessBook\Addins\OSIsoft.PB.ToolBarManager.Connect NAME NOT FOUND Desired Access: Read
Maybe this is the root of problem.
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
Now, i do repair the situation
For example, i can delete OSIsoft.PB.ToolBars.Playback.dll
I starts PB and there is no Playback addin of course because there is no dll. So, i need back dll to directory C:\Program Files (x86)\PIPC\Procbook.
More complicated case if someone delete OSIsoft.PB.ToolBarManager.dll file. When PB starts it also delete from registry key.
So, if i will return dll to directory C:\Program Files (x86)\PIPC\Procbook - it will not be enough. I need too restore registry key
If someone want restore ToolBarManager, take this code:
Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\PISystem\PI - ProcessBook\Addins\OSIsoft.PB.ToolBarManager.Connect]
"CommandLineSafe"=dword:00000000
"Description"="This add-in allows the inclusion of custom toolbars into PI ProcessBook."
"FriendlyName"="Extended Toolbar Manager add-in"
"LoadBehavior"=dword:00000003
and save it with reg extension.
My machine windows 7 64 bit. I think server 2008 64 bit same
arnow, can it help to you?
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
I made a reg file with your code in placed it in: C:\Program Files (x86)\PIPC\Procbook
I runned this file and restarted ProcessBook, still no playback toolbar.
Or did I understand your logic wrong?
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
arnow wrote:I made a reg file with your code in placed it in: C:\Program Files (x86)\PIPC\Procbook
I runned this file and restarted ProcessBook, still no playback toolbar.
Or did I understand your logic wrong? What about dlls?
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
I first removed OSIsoft.PB.ToolBarManager.dll and run the reg file. I restart PI Processbook and still no playback toolbar.
I get the warning : 'Extended toolbar manager add-in' could not be loaded. Remove it from the list of available Add-Ins?
Then I have to choose Yes or No. This make no difference whatever you choose.
I replaced this dll file and restart PI ProcessBook, still no playback toolbar.
I also tried removing the OSIsoft.PB.ToolBars.Playback.dll start PI Processbook. Replacing it and restarting PI Processbook. Still no playback toolbar.
I'm a little bit confused do I need to re-install PI ProcessBook after deleting the dll files, because that is something I did not yet tried.
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
What windows do you using? Maybe registry do not fit your OS? Why did i ask it? Becouse Wow6432Node exists only on 64-bit machines. One of my PCs is XP, and regestry key other: Code:
Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SOFTWARE\PISystem\PI - ProcessBook\Addins\OSIsoft.PB.ToolBarManager.Connect]
"CommandLineSafe"=dword:00000000
"Description"="This add-in allows the inclusion of custom toolbars into PI ProcessBook."
"FriendlyName"="Extended Toolbar Manager add-in"
"LoadBehavior"=dword:00000003
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
Does "Toolbar Manager" appears in "View"?
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
Could you click on it and it get "V"?
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
Yes I did this and this is how the whole problem started. Then in the toolbar manager I right click and "v" next to "Playback" is enabled but still the "Playback" toolbar is not visible, despite all the things I already tried before as already mentioned here above.
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|

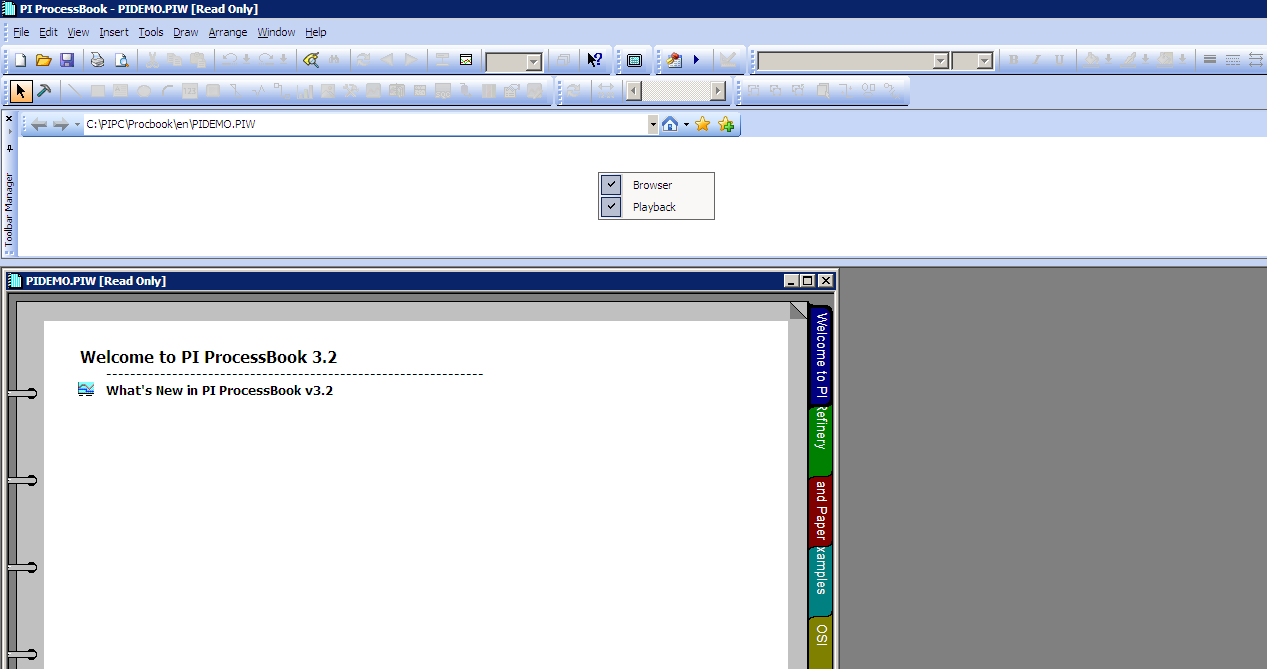

Do you have file "OSIsoft.PB.Toolbars.Playback.resources.dll" in directory "C:\Program Files\PIPC\Procbook\en" ? Becouse of i did some experiment and got the picture, that you talk about:  My expirement was delete dlls: OSIsoft.PB.Toolbars.Playback.resources.dll OSIsoft.PB.ToolBars.Playback.dll And as result, i get the picture
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
I got the OSIsoft.PB.Toolbars.Playback.resources.dll
but I don't got the OSIsoft.PB.ToolBars.Playback.dll
in my the directory C:\Program Files (x86)\PIPC\Procbook\en
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
arnow wrote:I got the OSIsoft.PB.Toolbars.Playback.resources.dll
but I don't got the OSIsoft.PB.ToolBars.Playback.dll
in my the directory C:\Program Files (x86)\PIPC\Procbook\en OSIsoft.PB.ToolBars.Playback.dll need to be in C:\Program Files (x86)\PIPC\Procbook, is ok. Did you get picture as i upload with the big white space instead of Playback?
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 1/11/2012
Posts: 45
Location: Belgium
|
Yes indeed this is the screen that I get.
|
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/13/2011
Posts: 77
Location: Middle East
|
arnow wrote:Yes indeed this is the screen that I get. So, 1. remove both files: from C:\Program Files (x86)\PIPC\Procbook\en file OSIsoft.PB.Toolbars.Playback.resources.dll from C:\Program Files (x86)\PIPC\Procbook file OSIsoft.PB.ToolBars.Playback.dll 2. start PB 3. Close PB 4. Restore both files (each in right directory) 5. start PB
|
|
|
|
